Improved processing efficiency for multiple applications - Cell Lysis / Protein Purification, Particle Size Reduction, Liposomes, Nanoemulsions and Dispersions

Highly versatile, with reproducible results, temperature control, flow rates from 1ml to 275ml per minute / 16 L per hour and a wide range of sample sizes from 1m to 32ml.

Our Lab Homogenizer's - Features and Benefits

Continuously adjustable process pressure from 1,500 psi (10 MPa) to 60,000 psi (410 MPa) allows processing of ingredients that are difficult or uneconomical to process in any other way, offering the widest scope of formulations

The homogenising valve features ceramic needle and seat with profiled geometry for optimised performance. Pneumatically controlled, it provides constant pressure and allows fine adjustment

Choice of (easily interchangeable) processing cells: 1 ml, 10 ml, 18 ml and 35 ml

The inverted design and full-stroking piston with bore seal practically eliminates dead volume

Can be run in single-shot mode - including very viscous formulations - and continuous mode (except the 1 ml cell). The flow rate in both modes is adjustable from drop-by drop to 200 ml/min (depending on the processing cell and formulation)

All wetted parts are simply removable without tools in less than one minute for cleaning, sterilization (including autoclave), pre-cooling, or pre-warming, all as required by the sample/process

Three options for temperature control

See image below.

For quick contact please click the 'Ask a Question' or 'Leave a message' tab.

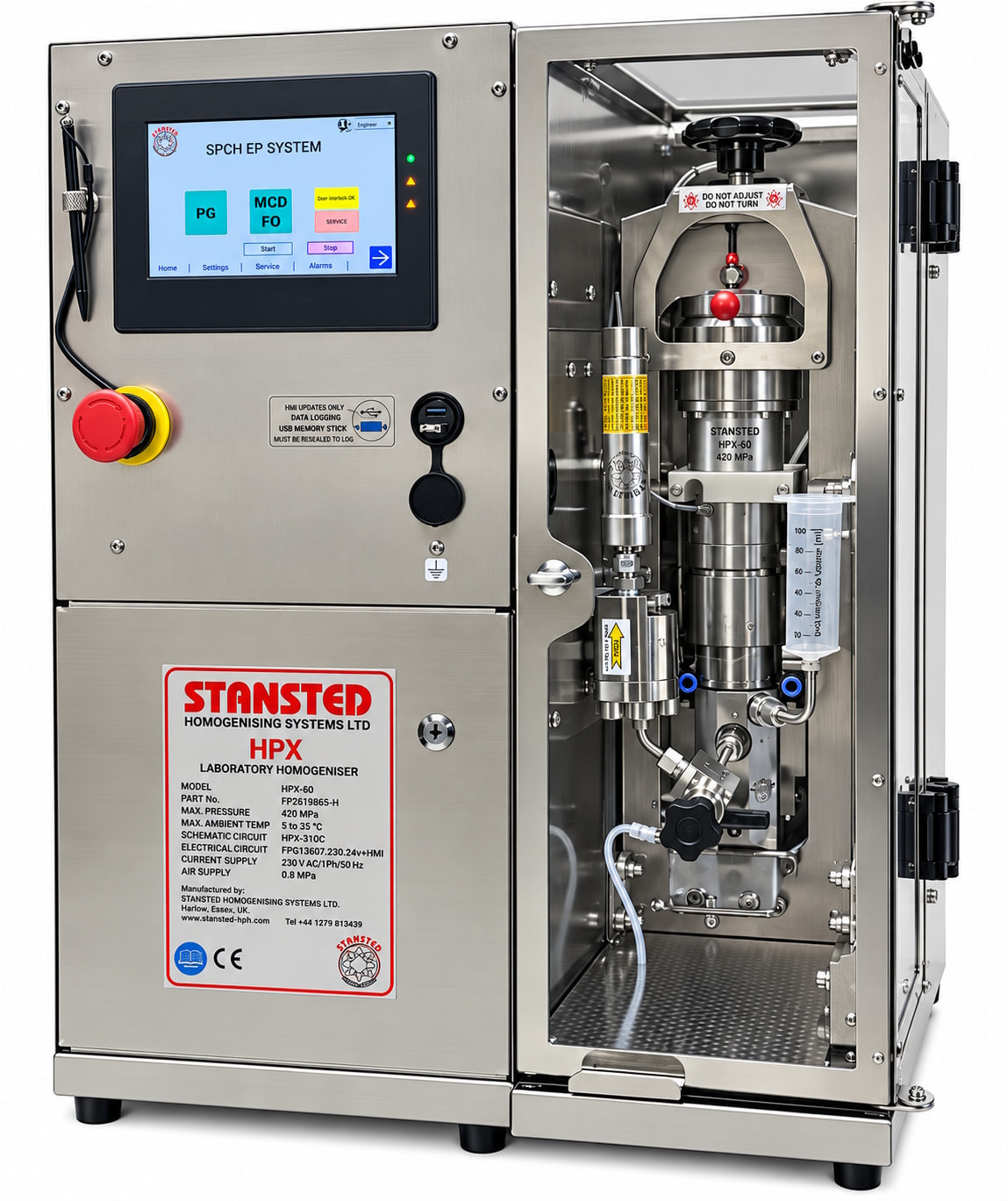

Lab Homogenizer - Cell Disruptor - Stansted model SPCH-EP

Homogenising Systems Cell Disruptor -  model FPG12800

View video of our Lab Homogenizer Cell Disrupter in operation

Improved processing efficiency for multiple applications

Cell Lysis - Disruption

Particle Size Reduction



Solid Lipid Nano Particles





Lab Homogenizer models - summary data

Lab Homogenizer - flow rate in ml per min and pressure ranges

Cell Disruptor - flow rate in ml per min and pressure ranges

European CE and other international safety standards compliant construction.

SPCH model with trolley mount

Lab Homogenizer on top of the Stansted trolley mount

Dimensions and Weight

(basic configuration)
Width approx. 550mm (21.7″)
Depth approx. 600mm (23.6″)
Height approx. 670mm (26.7″)
Weight approx. 125 kg (275 lb)
